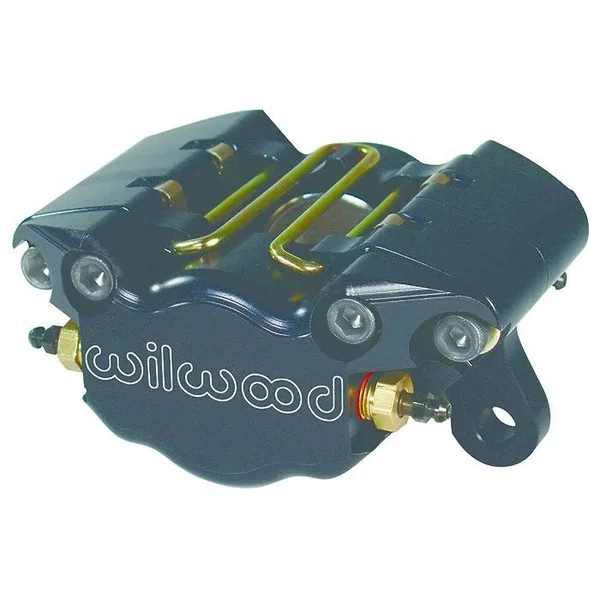

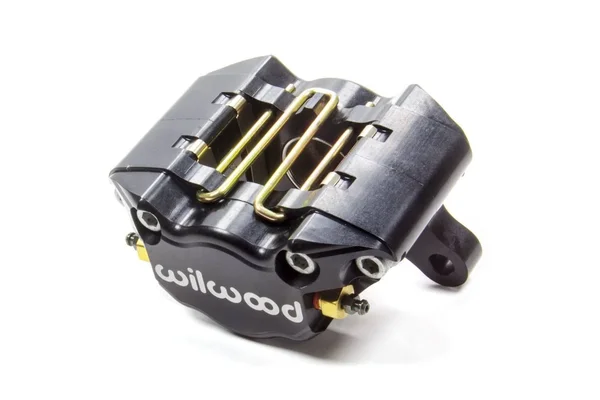

Wilwood 120-9690 Dynapro Billet Caliper

Description

Calipers are fitted with replaceable stainless steel SRS bridge plates. The package is completed with internal fluid passages and four corner bleed screws that allow mounting in any front, rear, left, or right side position. Calipers are fully CNC machined from premium grade alloy billet. The DynaPro Single (DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. DPS calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever. SRS plates eliminate bridge wear caused by pad gouging. Calipers are fully CNC machined from grade alloy billet. The DPS uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads. In addition to fast pad service without caliper removal, this feature provides substantially stronger retention over the single Quick-Clip pin and 7012 type pads used in the previous DLS models. The FEA generated body design incorporates a fortified transition between the piston housings and the bridges. The DPS uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads. The spring-loading action of the SRS plates eliminates pad rattle and dampens the vibration harmonics that contribute to squeal during engagement. The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top.

Key Features

• Calipers are fully CNC machined from grade alloy billet.
• The package is completed with internal fluid passages and four corner bleed screws that allow mounting in any front, rear, left, or right side position.
• In addition to fast pad service without caliper removal, this feature provides substantially stronger retention over the single Quick-Clip pin and 7012 type pads used in the previous DLS models.
• Calipers are fitted with replaceable stainless steel SRS bridge plates.
• The DPS uses heavy wall stainless steel pistons to resist corrosion and slow the heat transfer from the pads.

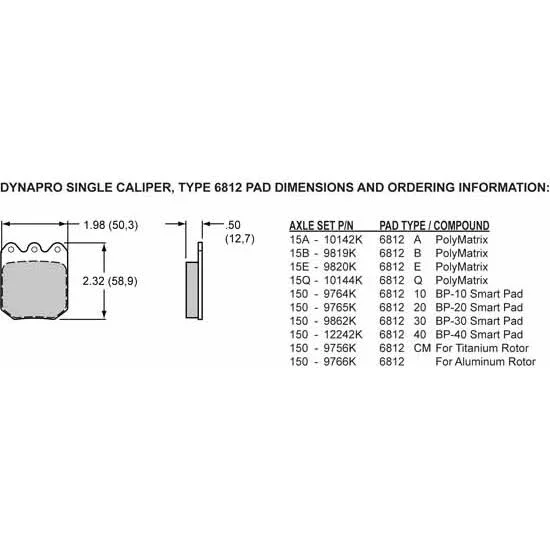

• The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top.
