Siemens

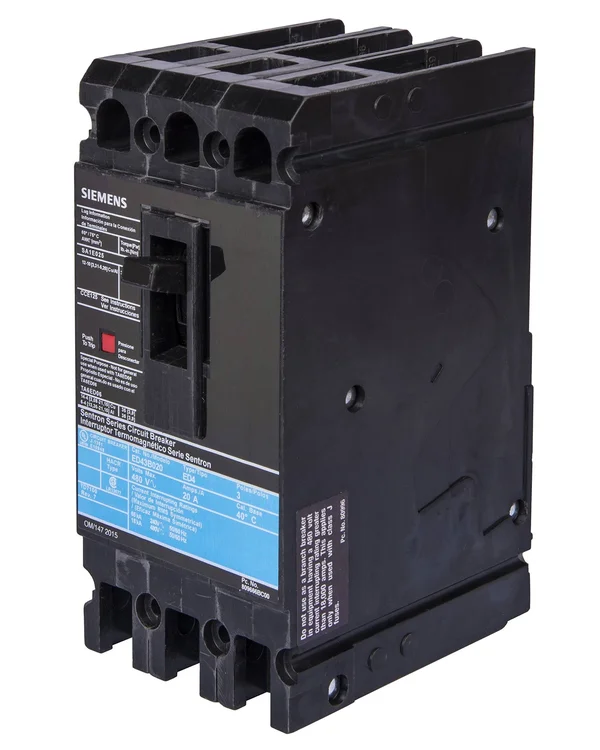

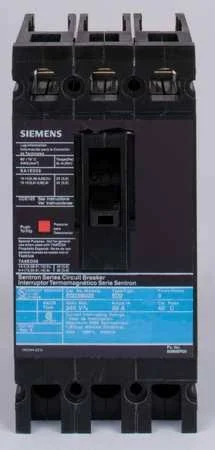

Siemens ED23B025 Molded Case Circuit Breaker
SKU: SKU-94C6837C0A2A
List Price: CA$116.32
Price includes all taxes
In Stock — Ready to Dispatch
-
Shipping calculated at checkout · Delivery timing is shown in the shipping policy
-
30-Day Returns · Eligibility rules apply
-
Secure Checkout · SSL encrypted payment
Eligible items may be returned within 30 days. See the return policy for conditions.
Payment Method
Cash on Delivery — pay when your order is delivered.
Product Details
About this product
Description
For 30-100 Amp breakers the catalog number is LN1E100. The CCE125 is the compression type lug for use on all ED frame breakers. ED Frame Sentron Series Circuit Breakers are for use in individual enclosures, switchboards, and panelboards. The breakers are available as thermal magnetic trip in types ED2, ED4, ED6, and HED4. ED frame breakers provide complete overload and short circuit protection by use of a time delay thermal trip element and an instantaneous magnetic trip element. All ED frame breakers are provided with load side lugs. Line side lugs may be added in the field if required. The catalog number for field added line side lugs for 15-25 Amp circuit breakers is SA1E025. For 30-100 Amp breakers the catalog number is LN1E100. For 110 and 125 Amp, use TA1E6125. The CCE125 is the compression type lug for use on all ED frame breakers. For 110 and 125 Amp, use TA1E6125. ED Frame Sentron Series Circuit Breakers are for use in individual enclosures, switchboards, and panelboards. ED frame breakers provide complete overload and short circuit protection by use of a time delay thermal trip element and an instantaneous magnetic trip element. Line side lugs may be added in the field if required. All ED frame breakers are provided with load side lugs. The breakers are available as thermal magnetic trip in types ED2, ED4, ED6, and HED4. The catalog number for field added line side lugs for 15-25 Amp circuit breakers is SA1E025.
Key Features
- The breakers are available as thermal magnetic trip in types ED2, ED4, ED6, and HED4.
- All ED frame breakers are provided with load side lugs.
- The CCE125 is the compression type lug for use on all ED frame breakers.
- For 110 and 125 Amp, use TA1E6125.
- ED Frame Sentron Series Circuit Breakers are for use in individual enclosures, switchboards, and panelboards.
- ED frame breakers provide complete overload and short circuit protection by use of a time delay thermal trip element and an instantaneous magnetic trip element.
