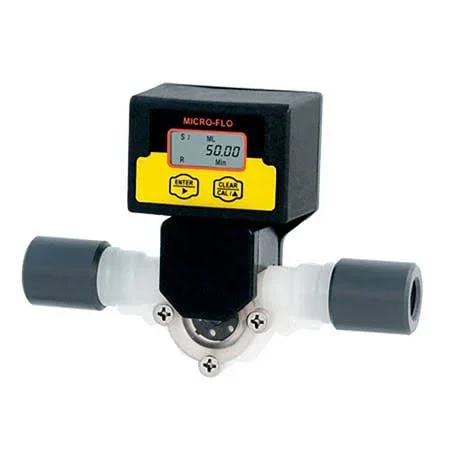

Omega - Micro-Flow Meter, FTB336D

Description

Available connections include 1/8 FNPT, 1/4 FNPT and 3/8" OD tube fittings. Six available flow ranges as low as 30ml/min to 7000 ml/min. User selectable scale factors include: flow units, gallons, liters, ounces, and milliliters. Programming values and total are stored in the non-volitile memory. Six available flow ranges as low as 30ml/min to 7000 ml/min. Units with displays have a 6-digit LCD, with up to 4 decimal positions that display both flow rate and total. Standard units have a clear PVC viewing lens, PVDF chemical resistant lens are available as an option. Available connections include 1/8 FNPT, 1/4 FNPT and 3/8" OD tube fittings. No display models have a 5 Vdc current sinking pulse output. They use Infra-red light beam technology. The FTB300 Series of digital paddle wheels are an economical choice for low flow rate applications. The total reset function can also be disabled. All units include an open collector alarm output. The enclosure is a weather resistant Valox PBT and rated NEMA 4X (IP56). Users can also program custom units. Time units include: minutes, hours, days.

Key Features

• They use Infra-red light beam technology.
• Six available flow ranges as low as 30ml/min to 7000 ml/min.
• Available connections include 1/8 FNPT, 1/4 FNPT and 3/8" OD tube fittings.
• User selectable scale factors include: flow units, gallons, liters, ounces, and milliliters.
• Time units include: minutes, hours, days.
• All units include an open collector alarm output.
