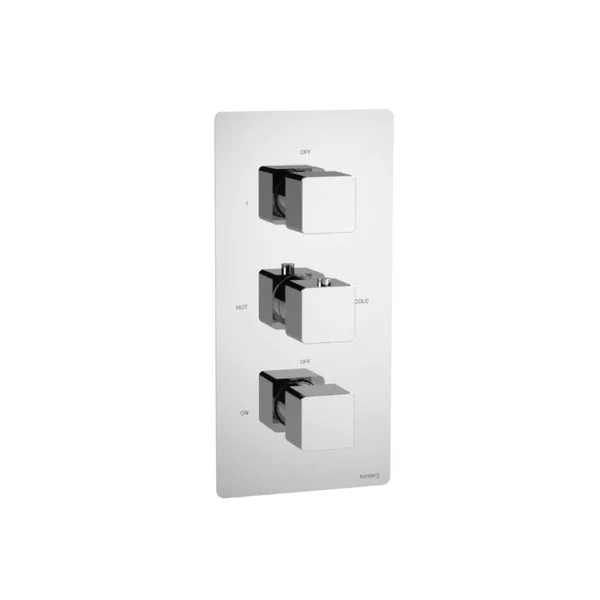

Isenberg 196.4501PN 3/4x22 Thermostatic Valve 3 Output with Volume Control and Trim Shared Port Operation Polished Nickel

Description

As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77 and 3.44. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Extensions Available - TVH.4401E**. Supply Stops - There are two safety stops at each water inlet to prevent water flow in case of installation and repairs. This will ensure that the trim plate will cover the cut out hole in the wall. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. 3/4" Thermostatic Valve - 3 Output with Volume Control and Trim - Shared Port Operation The 196.4501 is a thermostatic valve with NPT connection and two inlets for hot and cold water separately and 3 outputs with integral volume control functionality. Without pressing it, the user will not be able to rotate the handle to the full HOT position as an anti-scald prevention mechanism. Cut Out Dimensions - The cut out in wall should be 8.81 X 4.44 inches which is properly covered by the trim plate. With the help of this ring, temperature of the water is regulated. Also, the valve must be installed vertical and not at an angle. Features: Solid Brass Valve & Trim Includes Thermostatic Valve Shared 3 Port Water Flow. Any *4501 series trim can be used with this valve. Trims - The trim comprises of well finished trim plate and handle knobs.

Key Features

• In case, a tile is thicker or wall is deep, extensions are used for elongating both handles of the valve to ensure proper setting of the trim (length of extensions for TVH.4501 valve is 1.40 inches).
• As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the surface of finished tile which should be between 2.77 and 3.44.
• Cut Out Dimensions - The cut out in wall should be 8.81 X 4.44 inches which is properly covered by the trim plate.
• The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required during installation) for it to function properly.
• Trims - The trim comprises of well finished trim plate and handle knobs.
• Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value.
