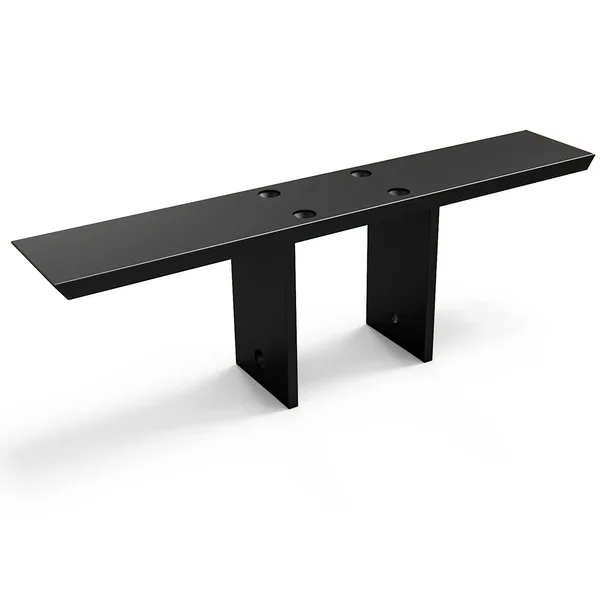

Hidden Center Mount Countertop Bracket - Knee Wall Support - Size: 30

Description

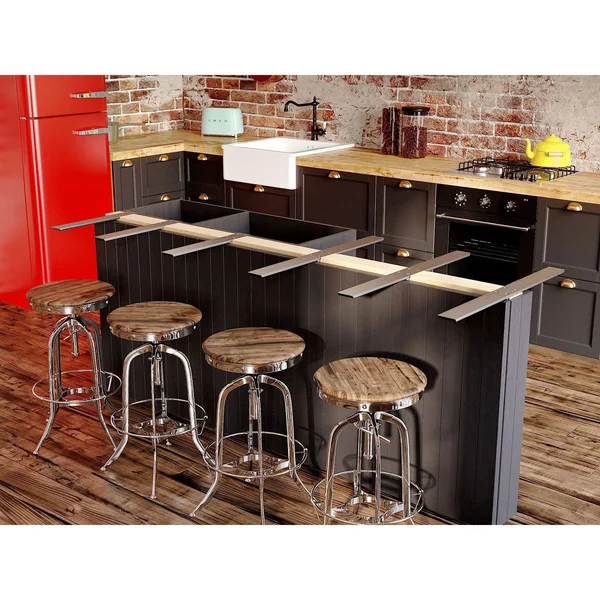

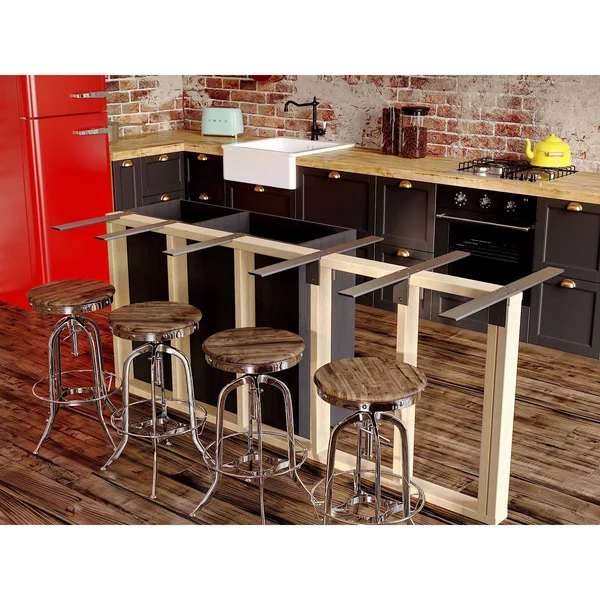

Support Vanities on both sides of a wall in a mirrored commercial setting. Note: using this bracket in a non-cantilevered application like this does reduce the recommended carrying capacity from 400lbs to 325lbs each. Alternatively you can mount brackets to header style supports as well when vertical wall studs are not possible. For this you would have to drill holes in the bracket and secure your wood shelf, desk, counter etc... Also refereed to as cantilevered support. You will want to space your brackets 16" - 24" apart, this will allow for maximum support. Install one bracket directly under a supporting vertical stud in your knee or pony wall. Securely mount the bracket to the stud. Example Bracket Size for Project – Let’s say you want to support a 40” wide countertop on your knee or pony wall. Support anything you need to including Granite, Quartz, Natural Stone, Concrete, Wood, Formica and all other materials. This support is nearly invisible creating a clean look. How to install the bracket? Pro Tip: For a wood countertop application you have the option to secure that to the bracket with screws and skip the glue. Prior to setting the top in place, run a bead of high-quality silicone adhesive down the center of each bracket. What Size Bracket Should You Use? with screws using the holes you drilled. Made to straddle 2x4 construction. This gives you an acceptable amount of overhang past the end of your bracket which is recommended to be 2-6 inches.

Key Features

• Used to support Granite, Quartz, Wood, Formica, Concrete and all other countertop materials.
• Support anything you need to including Granite, Quartz, Natural Stone, Concrete, Wood, Formica and all other materials.
• (metal studs need to be reinforced!) Specifications - Dimensions: Horizontal support: 2½" wide x ½" thick x 14" to 44" Vertical flange (straddle): 3.60" wide x 4" Tall x ½" thick (made to straddle 2x4 wall.
• Note: using this bracket in a non-cantilevered application like this does reduce the recommended carrying capacity from 400lbs to 325lbs each.
• Made to straddle 2x4 construction.
• Vertical steel flanges (straddle) provide additional stability and can be re-positioned to fit your needs such as a 2x6 wall, etc.
