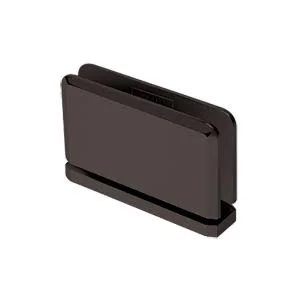

CRL Srpph01bl Black Senior Prima 01 Series Top or Bottom Mount Hinge

Description

Contact the DK Hardware Sales Shower Door Department. These Pivot Hinges are self-centering with four springs for maximum retention strength. (28 kg) with a maximum door width of 28" (711 mm). JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass the hinge will hold up to 62 lbs. Use only the template included with this hinge. The Glass-to-Fixed Transom Mount Pivot Hinge is used for doors having fixed transoms above them. Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs. SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure. It includes an adaptor used with our EZ-Adjust Header System. Advantages of CRL Senior Prima Hinges include the fact that they carry the majority of the weight on the bottom and have the ability to be inset from the wall enabling clearance for towel bars and other projections. Cut-Out Required Includes: Gaskets Screws and Glass Fabrication Dimensions Senior and Junior Prima Hinges are patented (Patent No. 5 297 313) Custom finishes are available on request. Important Notes: CRL Shower Door Hinges are designed for residential or hotel shower use. Cut-out dimensions for CRL hinges may not match. Construction: Solid Brass Hinge Swings: Full Rotation Closing Type: Self-Centering when within 15° of closed position.

Key Features

• (28 kg) with a maximum door width of 28" (711 mm).
• SENIOR PRIMA: Using two hinges with 1/2" (12 mm) tempered safety glass the hinge will hold up to 145 lbs.
• (66 kg) with a maximum door width of 36" (914 mm).
• Can also save on glass fabrication costs when compared to use of Side Mount Glass-to-Glass Hinges requiring more cut-outs.
• JUNIOR PRIMA: Using two hinges with 1/4" (6 mm) tempered safety glass the hinge will hold up to 62 lbs.
• SPECIFICATIONS: Glass Thickness: Senior Prima 1/2" (12 mm) Tempered Safety Glass Junior Prima 1/4" (6 mm) Tempered Safety Glass Special Feature: Top and Bottom Mount allows more glass exposure.
