#C2080 Conveyor Roller Chain 10 Feet with 1 Connecting Link

Description

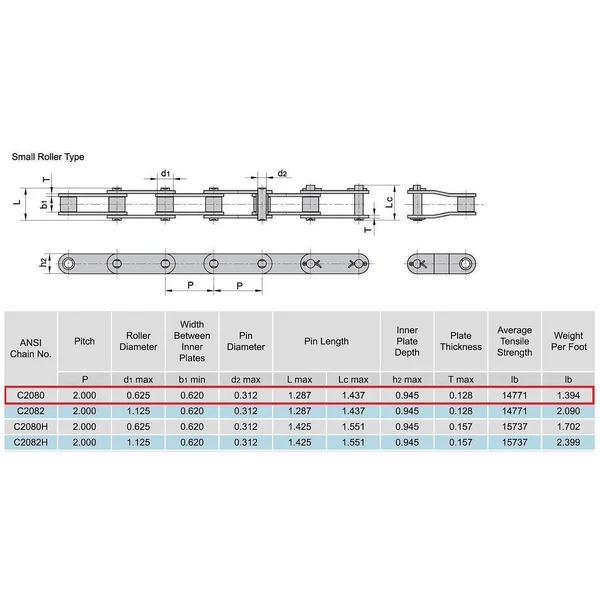

#C2080 Conveyor Roller Chain 10 Feet with 1 Connecting Link Pitch Size: 2.000 Inch Roller Diameter: 0.625 Inch Width Between Inner Plates: 0.620 Inch Pin Diameter: 0.312 Inch Pin Length L Max: 1.287 Inch Pin Length Lc Max: 1.437 Inch Inner Plate Depth: 0.945. All our Chain is certified from ISO 9001:2000 QM certification through ISO 14001 (which documents the sustainability and environmental compatibility of production and waste disposal processes) to the ISO/TS 16949 quality requirements for the automotive. All of our chains are factory preload. They are pretested to support and maintain the expected load the chain will see when in use. This will drastically increase the life of the chain. This lubrication and the process in which it is applied greatly improve the ware life capacity of the chain and further protect it from the effects of the environment. This includes heat treatment, which ensures the optimum ware life and toughness for all component parts. #C2080 Conveyor Roller Chain 10 Feet with 1 Connecting Link Pitch Size: 2.000 Inch Roller Diameter: 0.625 Inch Width Between Inner Plates: 0.620 Inch Pin Diameter: 0.312 Inch Pin Length L Max: 1.287 Inch Pin Length Lc Max: 1.437 Inch Inner Plate Depth: 0.945 Inch Plate Thickness: 0.128 Inch Average. This helps align the chain parts which will minimize the initial elongation. The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth.

Key Features

• The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth.
• This includes heat treatment, which ensures the optimum ware life and toughness for all component parts.
• Solid hardened and shot peened precision rollers are standard on most of our chains.
• #C2080 Conveyor Roller Chain 10 Feet with 1 Connecting Link Pitch Size: 2.000 Inch Roller Diameter: 0.625 Inch Width Between Inner Plates: 0.620 Inch Pin Diameter: 0.312 Inch Pin Length L Max: 1.287 Inch Pin Length Lc Max: 1.437 Inch Inner.
• During chain assembly, all chain components are oriented to ensure pins, bushings, and side plates are correctly positioned for optimum chain strength and long life.
• They are pretested to support and maintain the expected load the chain will see when in use.
