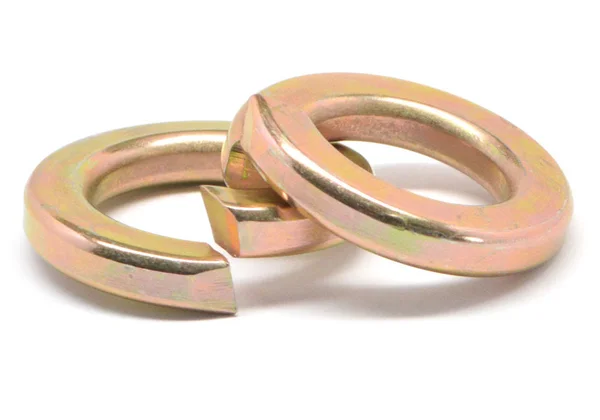

Asmc Industrial 9/16 Grade 8 MS35338 Split Lockwasher - USA Medium Carbon Steel Yellow Zinc Plated Pk 1000

Description

Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. PRODUCT SPECIFICATIONS Part #: 0000-207279 Fastener Type: MS35338 Split Lockwasher - USA Size Description: 9/16 Diameter/Nominal Size: 9/16* Inside Diameter: 0.564-0.574" Outside Diameter: 0.965" Thickness: 0.141" System of Measurement: Inch Grade: 8 Material: Medium Carbon Steel Finish: Yellow. Washers come in many different varieties; flat washers, split lock washers, toothed lock washers, beveled washers in both steel and iron, etc. Washers are thin disk-shaped plates with a hole that is used to distribute the load of a threaded fastener such as a bolt or nut; often have an outer diameter (OD) about twice their inner diameter (ID), but this can vary based upon the washer. PRODUCT SPECIFICATIONS Part #: 0000-207279 Fastener Type: MS35338 Split Lockwasher - USA Size Description: 9/16 Diameter/Nominal Size: 9/16* Inside Diameter: 0.564-0.574" Outside Diameter: 0.965" Thickness: 0.141" System of Measurement: Inch Grade: 8. PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot. Actual inside diameter is almost always larger than stated size. Country of Manufacture: United States *Washer Sizing: Washer sizes are nominal (sized for the bolt that the washer will fit).

Key Features

• PRODUCT SPECIFICATIONS Part #: 0000-207279 Fastener Type: MS35338 Split Lockwasher - USA Size Description: 9/16 Diameter/Nominal Size: 9/16* Inside Diameter: 0.564-0.574" Outside Diameter: 0.965" Thickness: 0.141" System of Measurement.
• Country of Manufacture: United States *Washer Sizing: Washer sizes are nominal (sized for the bolt that the washer will fit).
• Washers come in many different varieties; flat washers, split lock washers, toothed lock washers, beveled washers in both steel and iron, etc.
• Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture.
• Specifications allow for tolerances in dimension and shape, which can vary from lot to lot.
• PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM.
